| Pouch |
|
Paper Bag |
|
Sticker |
|
Paper Product |
|
|
|
◆ Process
Plastic color printing process
Pattern design→plate making→printing pretreatment→color version→sample printing→color gravure
Plastic film laminated technology
Base film preparation→glue & oil adjust→glue &oil drying→press and laminated→film adjust &roll
Pouch making technology
Based material preparation→measure setting→temperature setting→press setting→speed adjust→complete pouch inspection
◆ Machanical Performance
|
Material Laminated |
Stripping strength(vertical and horizontal)N/15mm |
Sealed stripping strength N/15mm |
Snap strength(vertical& horizontal N/15mm |
Elongation at break(vertical& horizontal)% |
|
BOPP/CPP |
≥2.0 |
≥13 |
≥30 |
vertical：70-150 |
|
horizontal：15-60 |
|
BOPP/VMCPP |
≥1 |
≥8 |
≥40 |
vertical：60-150 |
|
horizontal：15-60 |
|
BOPP/VMPET/CPP |
BOPP/VMPET≥1.5 |
≥20 |
≥40 |
/ |
|
VMPET/CPP≥2.0 |
|
PET/VMPET/CPP |
PET/VMPET≥1 |
≥20 |
≥40 |
/ |
|
VMPET/CPP≥2.0 |
|
BOPP/VMPET/LDPE |
BOPP/VMPET≥1.5 |
≥10 |
≥50 |
≥40 |
|
VMPET/LDPE≥2.0 |
|
PET/EVA |
≥3.5 |
≥35 |
/ |
/ |
|
PET/CPP |
≥3.5 |
≥30 |
≥40 |
30-120 |
|
PET/LDPE |
≥3.0 |
≥25 |
≥30 |
40-130 |
|
ONY/CPP |
≥4.0 |
≥30 |
≥40 |
40-120 |
|
PET/AL/ONY/LDPE |
PET/AL≥2.5 |
≥20 |
/ |
/ |
|
AL/ONY≥3 |
|
ONY/LDPE≥4.0 |
|
PET/VMCPP |
≥1.5 |
≥10 |
≥40 |
≥20 |
|
Paper/LDPE |
≥0.6 |
≥8 |
/ |
/ |
|
BOPP/Paper/LDPE |
BOPP/Paper≥0.8 |
≥10 |
/ |
/ |
|
Paper/LDPE≥0.6 |
|
Paper/AL/LDPE |
Paper/AL≥0.6 |
≥8 |
/ |
/ |
|
AL/LDPE≥3.0 |
|
BOPP/LDPE |
LDPE≥40μm |
≥1.5 |
≥15 |
≥40 |
vertical：50-180 |
|
LDPE＜40μm |
≥10 |
horizontal：15-90 |
|
ONY/AL/CPP |
≥2.5 |
≥15 |
≥30 |
≥35 |
|
PET/AL/CPP |
PET/AL≥2.5 |
≥30 |
≥50 |
≥15 |
|
AL/CPP≥4.5 |
|
PET/AL/LDPE |
PET/AL≥2.5 |
≥20 |
≥45 |
/ |
|
AL/LDPE≥3.0 |
◆ Pouch press resistance capability
|
G.W. of pouch and inner thing(g) |
Carry capacity (N) |
Requirement |
|
＜100
100-400
401-2000
＞2000 |
200
400
600
800 |
no leakage
no breakage |
◆ Pouch falling off test
|
G.W. of pouch & inner thing(g) |
Height of fall off (mm) |
Requirement |
|
＜100
100-400
401-2000
＞2000 |
800
500
300
250 |
no leakage
no breakage |
◆ Pouch application
|
Product name and application |
Structure（regular structure） |
Design principle |
|
chocolate
barrier、anti-light、beautiful printing, low temperature seal character |
Pure chocolate：oil ink/ink/white BOPP/PVDC/ cool seal tape
nut let chocolate：oil ink/ink /VMPET/AD/BOPP/PVDC/cool adhesive tape |
|
|
Drink packaging pouch
acidity drink PH<4.5 pasteurization, good barrier soft drink PH>4.5 121 , sterilization，high-barrier
|
Acidity-drink：PET/PE（CPP）
BOPA/PE（CPP）
PET/VMPET/PE
soft-drink：PET/PA/CPP
PET/AL/PA/CPP
PET/AL/PET/CPP
PA/AL/CPP |
To acidity and soft drink, PET/PA have big barrier character，anti-pasteurization, longer the shelf live because of the acid
to soft drink, AL provide best barrier,，PET/PA have high strength, continuous autoclave resistance. |
|
Sauce
high-strength，long shelf life，oxidation resistance，canker resistance，oxidation
seal side pollution resistance |
KPA/LLDPE.EVA
BOPP/VMPET/LLDPE.EVA
|
KOP、AL、VMPET are All high-barrier material, AL layer is far away from inner layer，protect to be cankered. LLDPE.EVA, seal side pollution resistance |
|
cleanliness liquid stand-up pouch
high-strength，crack-resistance，hard, can stand-up. good seal side
|
1 solid BOPA/LLDPE bottom BOPA/LLDPE
2 solid BOPA/strength
BOPP/LLDPE
bottom：BOPA/LLDPE
3 solid PET/BOPA/t
BOPP/LLDPE
bottom BOPP/LLDPE |
High-barrier，good material ，used for solid pouch；soft bottom，；inner are better PE，,seal side pollution resistance
|
|
Pesticide packaging
grain、powder
liquid: strength, soft, crack resistance ,good seal character
|
BOPA/VMPET/S-CPP
|
BOPA soft, puncture resist, strength, better for printing ance, VMPET：good barrier, and high strength，can sue thicker VMPET material; S-CPP provide hot seal and barrier and ，causticity resistance，use three PP or layers co-extrusion EVOH、PA layer MCPP
bond，best use the text bond :UK3640/UK6800
LY-50VR/LY-50VRH |
|
Weight packaging pouch（rice, bean , fertilizer）
soft and barrier |
PE/woven /PP
PE/PE
PE/woven PE |
PE hot seal，flexible、fall resistance，plastic woven material have high strength
|
◆ Regular products
|
Function |
Material Structure |
|
Flesh meat |
BOPA/EVOA/PE, BOPA/EVOA/EVA, VPA/EVA |
|
Meat good |
BOPP/PA/PE,PVDC/EVA
KPA/PE, PA/PE
KPET/PE, PET/AL/PET/PE
PET/AL/PE, BOPA/EVOH/PE
PET/EVOH/PE, PVC/EVOH/PE |
|
Drink& syrup
|
PET/AL/PE, PET/EVOH/PE
BOPA/KPA/PE, PET/AL/BOPA/PE
BOPA/VMPET/PE, PET/AL/PET/PE
BOPA/KPET/PE |
|
Frozen food |
PET/PE, BOPA/PE, VMPET/PE
BOPP/VMPET, BOPP/PE |
|
Milk powder |
PET/PA/PE, BOPP/VMPET/PE |
|
Coffee |
PET/PA/PA, BOPP/AL/PE
VMPET/PE, Paper/PE/AL/PE
BOPA/AL/PE, BOPA/VMPET/PE |
|
Cake |
BOPP/VMPET/CPP, BOPP/PE/VMCPP/EXPP
BOPP/EXPE/VMCPP, BOPP/VMCPP |
|
Fast food soup |
PET/AL/PE, Paper/AL/PE
BOPA/EVOH/PE, PA/PE KPA/PE
PA/PE/AL/PE |
|
Pickles |
BOPP/PE, BOPP/EVOH/PE（EVA）
PET/PE（EVA）, BOPP/PE
KPET/PE, KPA/PE |
|
Cheese |
BOPA/EXPE/PE, BOPA/PE PET/PE
PE/EVOH/PE |
|
Cake &pastry |
BOPP/PE, KOPP/PE, BOPP/PE（EVA）
KPET/PE （EVA） |
|
Tea |
PET/PE/AL/PE, BOPP/VMPET/PE
KPET/PE, PET/PE/VMPET/PE/CPP |
|
Candy |
VMPVC, OPE, PET/VMCPP
BOPP/VMCPP, PET/PL MT/CPP |
|
Chocolate |
PET/VMCPP, AL/EAA
BOPP/VMPET |
|
Puffing Food |
BOPP/CPP, BOPP/VMCPP, MT/PE
PET/VMCPP, BOPP/PE/VMPET/PE/CPP |
|
Monosodium glutamate |
KPA/EXPE/PE, BOPP/PE
KOP/PE, PET/CPP |
|
Preserved szechuan pickle |
BOPP/AL/PE, BOPP/VMPET/PE
PET/VMPET/PE, BOPA/VMPET/PE |
|
Medcial packaging |
BOPP/PE, PET/PE, BOPA/PE
BOPA/CPP, PET/VMCPP
BOPP/VMPET/PE, BOPP/AL/PE |
|
Bistoury |
BOPP/PA/PE, PET/AL/PE |
|
Cream |
PET/AL/PE |
|
Washing powder |
BOPP/PE, BOPET/PE, BOPA/PE |
|
Abstersion liquid |
BOPP/PE, PET/BOPA/PE
PE/PET/PE, PET/CPP
PET/BOPA/CPP, PET/PE |
|
shampoo |
BOPP/VMPET/PE, BOPP/AL/EAA
BOPP/AL/PE, PET/AL/PE |
|

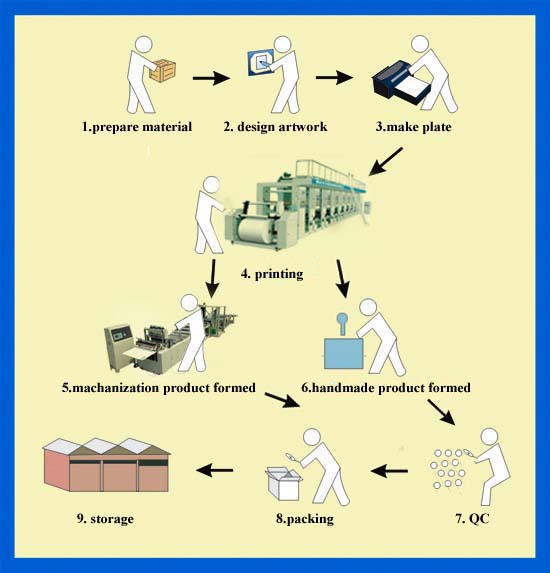

◆ Process
Correction of artwork or make artwork→Production of samples→Confirmation of samples→Formal production→QC→Check-up goods→Booking ship→Delivery→After-sales service( keep samples and reply some questions on goods from Customers)
◆ Paper Types (standard weight)
 Natural Brown Kraft Recycled Brown Kraft Bleached White Recycled Bleached White Bright White Bleached White Oatmeal Flipside Tinted Paper Beater Dyed Paper White Claycoated Recycled White Claycoated Bright White Claycoated Synthetic ◆ Most popular sizes
|
Most popular sizes
width x gusset x height (mm) |
|
150 x 70 x 230 |
320 x 100 x 320 |
|
220 x 90 x 205 |
370 x 90 x 250 |
|
230 x 90 x 220 |
440 x 120 x 320 |
|
240 x 90 x 390 |
440 x 150 x 370 |
|
230 x 90 x 360 |
320 x 100 x 440 |
|
250 x 80 x 350 |
350 x 120 x 460 |
|
310 x 120 x 220 |
450 x 120 x 370 |
|
310 x 100 x 425 |
550 x 120 x 350 |
◆ Handles
Paper bags for handles are as follows; for each list, the bulleted items are in order, beginning with the most economical option:
Kraft Paper Twisted Oatmeal Paper Twisted White Paper Twisted Stock Color Plastic Tube Stock Color Paper Twisted Special Match Color Paper Twisted Duplex Paper Twisted Triplex Paper Twisted Flat Rigid Handle Special Match Flat Rigid Handle Fabric Cord Stock Color Standard Macramé Special Match Color Macramé Stock Color Cotton Twill Special Match Color Cotton Twill Knotted Paper Twisted
◆ Printing
The paper bags for printing options are as follows; for each list, the bulleted items are in order, beginning with the most economical option:
Printing Options
Flexography Gravure Sheet-Fed Offset Print Method
Tailprint Preprint Graphics
Line Work 1-3 Colors Line Work 4-6 Colors Half Tone/Duotone Four-Color Process Insider-Inside/Outside printing is a value-added option available for many print jobs
◆ Varnishes and Laminations
Paper bags for varnish and lamination options are as follows; for each list, the bulleted items are in order, beginning with the most economical option:
Varnishes and Laminations (uncoated papers)
Mirage Stripe Standard Overprint Varnish High Gloss Varnish Matte Varnish Gloss UV Varnish High Gloss Lamination Matte Lamination Varnishes and Laminations (coated papers)
High Gloss Varnish Matte Varnish Pearlized Varnish Gloss UV Varnish Gloss Lamination Matte Lamination
◆ Hot Stamping
Paper bag for hot stamping options are as follows; for each list, the bulleted items are in order, beginning with the most economical option:
Hot Stamping Applications
Rotary Hot Stamping Conventional Hot Stamping Hot Stamping Foils
Plain Metallic Metallic Colors Pigmented Colors (Non-Metallic) Plain Holographic Metallic Pattern Holographic Metallic
◆ Packaging
Bale Pack (strap and shrink wrap) Carton Pack Collation |
1.Artwork
Custom Design work is our specialty. Send us what you have. Based on your individual requirements, we can make helpful suggestions or even brainstorm with you to help find the right design and the best type of pin to meet your objectives. We'll send you a pre-production artwork of your pin via fax or e-mail for approval. All pins come with military clutch at no extra charge. We also offer a variety of other attachments, contact our sales representative for more info.
Free graphics
For the fastest service we prefer artwork in any one of the following formats provided to us:
>Adobe Illustrator
>Adobe Photoshop
>Acrobat Reader
Imitation / Soft Enamel:
Please specify the PMS number (Pantone Matching System) or the 4 Color CMYK. Pantone Color Chart
2. Custom service
Customer can provide products design, we accord customer require to produce;
Our can provide design for custom requirement
3. Process
Correction of artwork or make artwork→Production of samples→Confirmation of samples→Formal production→QC→Check-up goods→Booking ship→Delivery→After-sales service( keep samples and reply some questions on goods from Customers)
|
|
|
|
|
|
